Characteristics
- Function
- milling
- Other characteristics
- high-speed, motorized, oil-lubricated, HSK-E 25, HSK-E 20
- Rotational speed
-
Min.: 75,000 rpm
(471,238.9 rad.min-1)Max.: 90,000 rpm
(565,486.68 rad.min-1) - Diameter
-
120 mm
(4.7 in)
Description

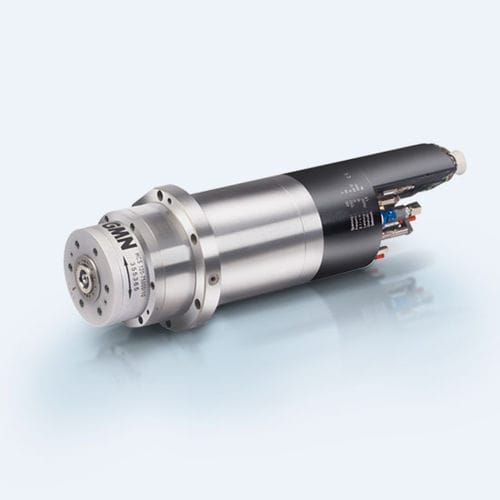

GMN high-speed milling spindles are an essential component of highly-effective machining of various materials. Whether aluminum, steel or titanium, these spindles are optimally designed for all machining tasks which require performance, torque and speed. Using an oil-air or grease permanent lubrication, the spindle bearings operate in a secure fashion.
For field-oriented control, optionally available without lathe work.
TECHNICAL DATA:
Power: S1 max. 15 kW
Torque: S1 max. 6 Nm
Motor: Synchronous motor
Tool interface: HSK-E
Lubrication: Oil-air lubrication
