Description

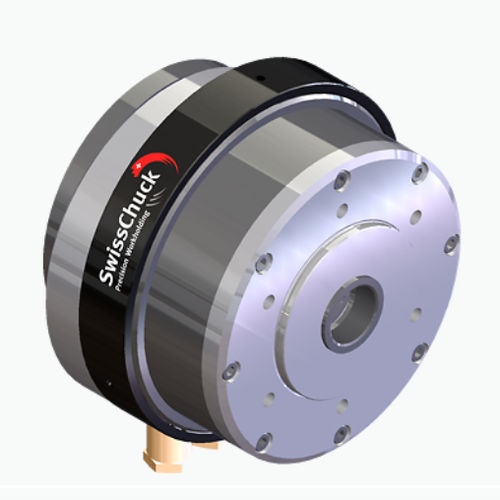

The compressed air hollow cylinders were specially developed as a clamping unit for power clamping devices on machine tools with RPMs up to 8000 min‾¹. Rotating clamping cylinders are attached to the spindle end of a lathe or a grinding machine. They have the task of generating an axial force for the rotating power chucks mounted at the spindle head. This axial force is transmitted via a connecting link, designed as a tube or a drawbar, going through the spindle bore to the respective power chuck used with an adapter.

Cylinder with a through bore, for example, for grinding fluids or air-controlled workpiece contact
Available in varied sizes and different piston surfaces
Special design for your machine

Compact and lightweight construction
Double-action clamping cylinder, pneumatic clamping, and releasing
Adapted for precision chucks
With safety valves. Clamping is pneumatically safeguarded
